Installation of click-fold roofing

Click-fold is a modern roofing material that perfectly combines aesthetics and innovation. The main property of this material is the presence of a special lock (fold) with a self-closing function. This feature simplifies and speeds up the installation process, while it allows for installation without special tools. In fact, even an inexperienced craftsman can handle the installation.

What do you need to know about click fold?

This material is metal panels, called paintings, allowing you to build a roof with a vertical lock. On one side there is a formed lock, on the other - an element for closing. Laying click-fold panels is carried out by superimposing one on top of the other, using a slight pressure. A characteristic click indicates that the structure is fixed. Seam roofing is characterized by the following properties:

• easy and quick installation, which reduces labor costs;
• high-quality sealed seam system - the created connection does not allow leaks;
• roof installation without punctures - the absence of through holes increases the tightness index;
• original roof design - click-fold creates an aesthetic metal roof in a modern style;
• hidden roof fastening - panels are fixed on a specialized perforated shelf, which is subsequently masked by the next one;
• long service life - metal roofing without screws will last from 25 to 50 years or more;
• low weight - coated steel roofing does not overload the rafters and the building as a whole.

Metal is used in the production of the material - mainly galvanized steel, aluminum, copper or zinc titanium. The thickness of the metal is usually 0.45 - 0.7 mm. Anti-corrosion polymer coating not only provides a protective effect, but also allows you to get a wide panorama of shades.

How to prepare for the installation of a click-roll roof

It usually doesn't take much time to build a roof using this material. In essence, the fold lock system involves installing the sheets and lightly pressing. However, it is necessary to pay attention to some points.

Preparatory work begins with design, calculating the required quantity and purchasing the material. The technical characteristics of the click fold and the specifics of the operation of the facility are taken into account.

Next, you should prepare the base. If the roof has an angle of inclination of 16-25 degrees, then the base is formed by a solid format of boards or OSB boards. If the angle of inclination is more than 25 degrees, it is necessary to make a sheathing, where the distance between its elements is determined by the indicator of the angle of inclination itself:

• up to 35 ° - 50 mm;
• up to 45 ° - 100 mm;
• up to 70 ° - 200 mm;
• up to 90 ° - 300 mm.

After this, a waterproofing layer is laid. The material for such work is selected depending on the design of the under-roof space. For example, a waterproof layer needs to be attached to an insulated attic. Installation is carried out directly on the rafters.

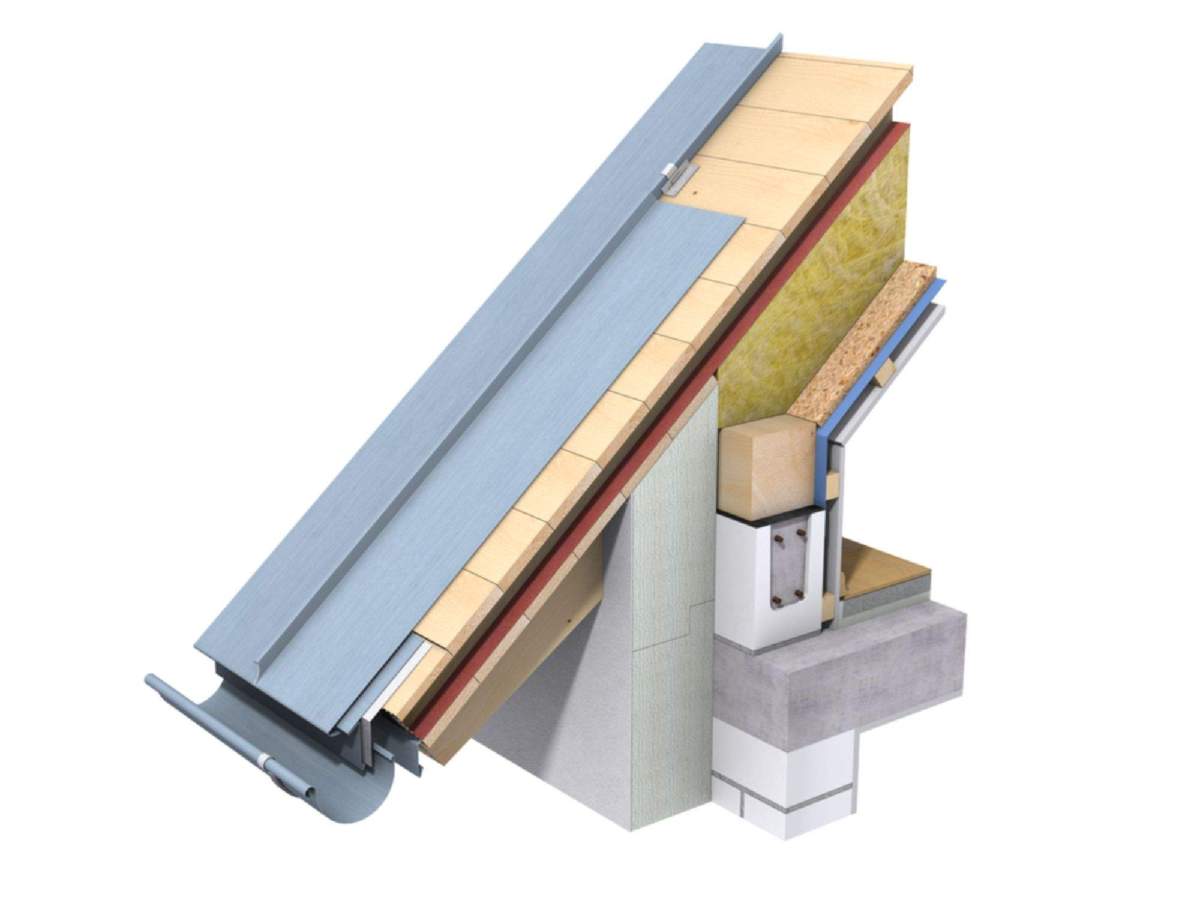

Installation of click-seam roofing – features of roof structure

After preparing for the installation of the castle roof, the entire process can be divided into the following stages:

• Formation of the counter-batten. It is needed for ventilation under the click-fold to prevent moisture and condensation. It is made of wooden bars at least 50 cm long.
• Protection of the under-roof space. Thanks to it, dust and debris will not fly under the standing seam during operation. For this, the ventilation gap is closed with a special element.
• Insulation. The type of material is selected in accordance with the climatic conditions of the region. Often, high-quality and durable standing seam roofing is supplemented with mineral wool with a thickness of 50 to 100 mm. It is laid between the rafters, covered with a vapor barrier.
• Installation of the click-fold. The tools used are metal shears, beveled pliers, a mallet and a device for bending the cornice. Installation is carried out on the lathing using self-tapping screws with a press washer

The technology of installation of click-fold roofing is described in detail by the manufacturer in the accompanying instructions. If difficulties arise in such work, it is always possible to seek help from professionals. The construction company "Alba" offers a turnkey click-fold installation service, providing the customer with a ready-to-use facility.
